Compared to regular bits, the Four Blade Wing High Performance Petroleum Drill Bit is a big step forward in drilling technology. This new drilling solution has better cutting structures, better hydraulics, and better wear resistance, which means it can penetrate 25% to 40% faster than standard tri-cone bits. Standard bits use simple cutting processes, while the four-blade wing design uses advanced PDC cutter positioning and better channels for getting rid of debris. These engineering advancements lead to lower drilling costs, longer bit life, and better performance in medium-hard rocks like shale, limestone, and sandstone.
Understanding Four Blade Wing Drill Bit Technology
The advancement of drill bit technology has changed the way oil is extracted around the world. Modern four-blade wing designs use advanced engineering ideas to make drilling more efficient while keeping the bits very durable. These high-tech drilling tools have PDC cutters that are precisely placed and configured in the best ways.
Most traditional rotary drill bits have three-cone or fixed-cutter designs with only a few cutting surfaces. The four-blade design improves the active cutting surface by around 30%, which makes it better at cutting through rock. Each blade has certain geometric angles that help it remove trash more quickly and make it easier to regulate drilling vibration.
In controlled drilling situations, tests show that four-blade designs can penetrate medium-hard rocks at rates of 15 to 25 meters per hour, while conventional designs can only do so at rates of 8 to 15 meters per hour. The improved cutting structure spreads out the cutting pressures more evenly, which cuts down on wear patterns and makes the tool last longer.
Four-blade wing designs are better than regular tri-cone choices for getting the most penetration in shale or limestone deposits.
Performance Comparison: Advanced vs Traditional Drilling Solutions
Comprehensive field studies reveal significant performance differences between advanced four-blade systems and traditional drilling equipment. The enhanced cutting geometry delivers measurable improvements in multiple operational parameters including drilling speed, borehole stability, and overall drilling cost reduction.
Rate of penetration studies conducted across various geological conditions show consistent advantages for four-blade configurations:
- Penetration Speed: Four-blade designs achieve 25-40% faster drilling rates in medium hardness strata
- Operational Stability: Reduced lateral vibration by up to 60% compared to conventional bits
- Cutting Efficiency: Enhanced debris evacuation through optimized mud flow channels
- Durability Metrics: Extended bit life of 150-200 drilling hours versus 80-120 hours for traditional designs
Downhole performance measurements indicate that advanced blade configurations maintain consistent cutting effectiveness throughout extended drilling operations. The optimized hydraulics facilitate superior wellbore cleaning, reducing the risk of stuck pipe incidents and improving overall operational safety.
Directional drilling applications particularly benefit from the enhanced stability characteristics. The balanced cutting forces reduce tool face control issues, enabling more precise wellbore placement and trajectory management.
For applications requiring extended drilling operations with minimal bit changes, the Four Blade Wing High Performance Petroleum Drill Bit is more suitable than conventional alternatives.
Material Engineering and Manufacturing Excellence
Advanced drill bit manufacturing incorporates premium-grade materials specifically selected for demanding petroleum extraction environments. The steel body construction utilizes high-strength alloys that resist fatigue and maintain structural integrity under extreme downhole conditions.
PDC cutter technology is an important part of how well contemporary drilling works. These carbide inserts have diamond layers that make them very resistant to wear and keep their sharp cutting edges even after long periods of use. Tests in the lab show that high-quality PDC cutters stay sharp for 40 to 50 percent longer than regular ones.

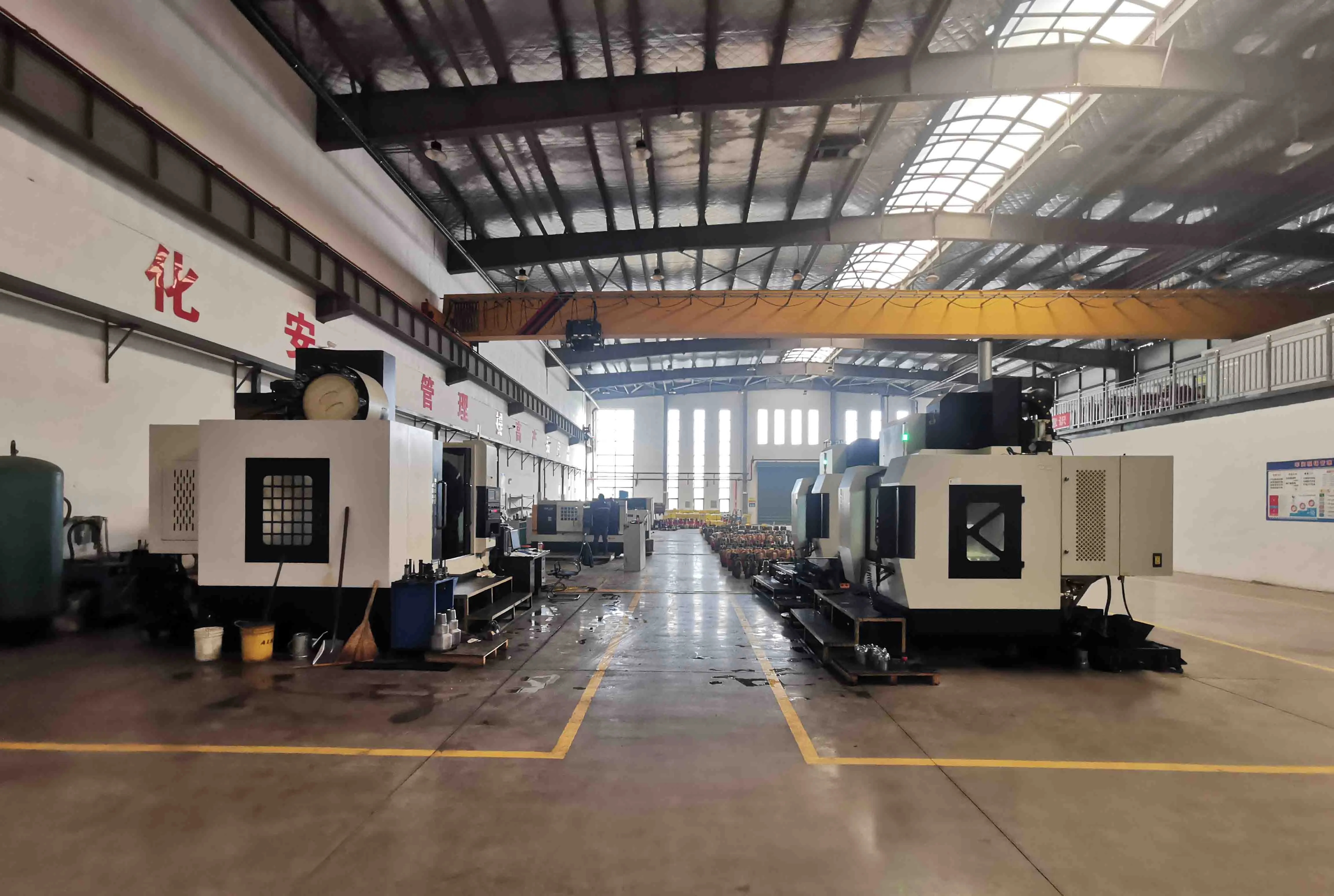

The accuracy of manufacturing has a direct effect on how well drilling works and how reliable it is. Advanced CNC machining makes sure that the blade shape stays the same and that the cutter is in the best spot. Quality control checks make sure that dimensions are accurate within ±0.05mm tolerances, which ensures that all production batches will work reliably.

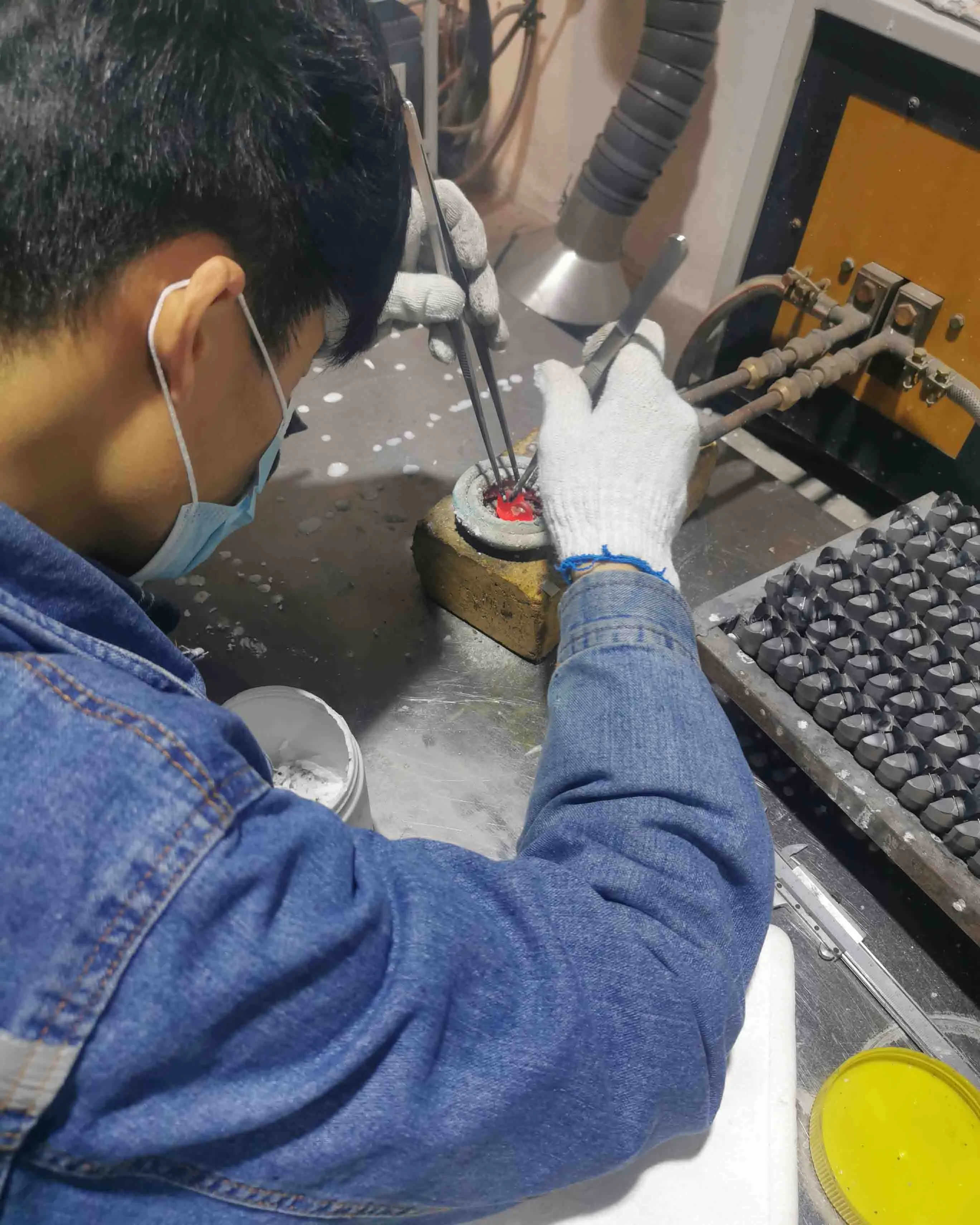

Welding procedures for PDC attachment follow aerospace-grade standards, creating metallurgical bonds that withstand high torque resistance conditions. Thermal cycling tests simulate downhole temperature variations, confirming joint integrity throughout operational temperature ranges of 150-200°C.
If you need guaranteed quality and long-term reliability, then precision-manufactured bits with certified materials are more suitable than budget alternatives.
Operational Parameters and Formation Compatibility
Optimal drilling performance requires careful consideration of operational parameters matched to specific geological conditions. Four-blade wing designs operate effectively within defined parameter ranges that maximize efficiency while preventing premature wear or damage.
Recommended operational specifications include:
- Rotational Speed: 60-250 RPM depending on formation hardness
- Weight on Bit: 10-100 KN based on hole diameter and rock properties
- Drilling Fluid Flow: 25-36 LPS for effective cuttings transport
- Torque Management: Variable settings optimized for formation characteristics
Formation compatibility studies demonstrate excellent performance in medium hardness strata including shale, limestone, sandstone, and gypsum formations. These geological conditions represent the majority of petroleum extraction environments worldwide, making Four Blade Wing High Performance Petroleum Drill Bit technology broadly applicable across industry applications.
Drilling fluid compatibility ensures reliable operation with various mud systems including water-based, oil-based, and synthetic formulations. The optimized hydraulics promote effective drilling fluid circulation, maintaining hole cleaning efficiency and thermal management.
If you need versatile performance across multiple formation types, then four-blade wing bits are more suitable than specialized single-formation designs.
Cost Analysis and Economic Benefits
Economic evaluation of drilling technology requires comprehensive analysis of initial investment, operational efficiency, and total cost of ownership. Four-blade wing technology delivers measurable cost advantages through improved drilling speed, reduced bit consumption, and enhanced operational reliability.
Direct cost comparisons reveal significant advantages:
| Cost Factor | Four-Blade Wing Bits | Conventional Bits | Advantage |
|---|---|---|---|
| Average Drilling Speed | 20 m/hr | 12 m/hr | 67% faster |
| Bit Life | 180 hours | 100 hours | 80% longer |
| Cost per Meter | $45 | $72 | 38% reduction |
| Trip Frequency | Every 1800m | Every 1000m | 44% fewer trips |
Rig time represents the largest component of drilling costs, typically accounting for 60-70% of total well expenses. Improved penetration rates directly translate into reduced rig time requirements, generating substantial cost savings on deep drilling projects.
Reduced trip frequency minimizes non-productive time associated with bit changes. Each round trip typically requires 4-8 hours depending on well depth, making trip reduction a significant economic factor in project economics.
If you need maximum cost efficiency for medium to large drilling projects, then investing in high-performance four-blade technology is more suitable than using multiple conventional bits.
Application Scenarios and Industry Use Cases
Four Blade Wing High Performance Petroleum Drill Bit technology is used in a wide range of fields, including oil extraction, mining, and geological investigation. Each application scenario benefits from certain performance characteristics that are in line with the needs of the operation and the geological conditions.
These sophisticated bits are used in oil and gas exploration projects for both vertical and directional drilling. The improved stability features are especially useful in horizontal drilling, where accurate trajectory control is necessary for the best contact with the reservoir.
Geothermal drilling operations benefit from the fact that they can work well in high-temperature conditions and have better thermal resistance. The strong construction keeps the cutting edge sharp at temperatures up to 200°C, making it possible to drill efficiently in geothermal reservoirs.
To get methane from coal beds, you need unique drilling techniques that get the most gas out of the least amount of damage to the formation. Four-blade designs cut gently, keeping formation permeability while still getting the needed penetration rates.
Water well drilling teams like how well they work and how cheap they are in different types of aquifers. The flexible design can withstand the different types of rock and soil that are often seen on water well development sites.
If you need a wing design that works well for a lot of different drilling jobs, four-blade wings are better than designs that are only good for one type of job.
HNS Four Blade Wing High Performance Petroleum Drill Bit Advantages
- Exceptional Durability: Premium PDC cutters and high-strength steel bodies deliver extended operational life exceeding 180 drilling hours in medium hardness formations, significantly reducing bit replacement frequency and associated costs.
- Superior Penetration Performance: Advanced four-blade geometry achieves 25-40% faster drilling rates compared to conventional alternatives, with documented penetration speeds reaching 20-25 meters per hour in optimal conditions.
- Enhanced Formation Stability: Optimized cutting structure reduces drilling vibration by up to 60%, promoting superior borehole stability and minimizing wellbore deviation issues during directional drilling operations.
- Advanced Hydraulic Design: Engineered fluid flow channels facilitate efficient cuttings removal and thermal management, maintaining optimal downhole conditions throughout extended drilling operations in challenging formations.
- Reduced Operational Vibration: Balanced blade configuration and precision manufacturing minimize harmful vibrations that cause premature equipment wear, extending the operational life of entire drilling assemblies.
- Cost-Effective Engineering: Optimized design specifically targets medium hardness formations, delivering maximum performance-to-cost ratios for the most common geological conditions encountered in petroleum extraction.
- Versatile Formation Compatibility: Proven performance across shale, limestone, sandstone, and gypsum formations provides operational flexibility for diverse drilling projects without requiring specialized bit inventories.
- Precision Manufacturing Standards: ISO 9001:2015 certified production processes ensure consistent quality and dimensional accuracy within ±0.05mm tolerances, guaranteeing reliable performance across all production batches.
- Custom Design Capabilities: Dedicated engineering team provides tailored solutions for specific geological conditions and operational requirements, optimizing bit performance for unique drilling challenges and formation characteristics.
- Advanced Material Technology: Premium-grade steel construction combined with high-quality PDC cutter technology delivers exceptional wear resistance and cutting efficiency in demanding petroleum extraction environments.
Conclusion
The comparison between Four Blade Wing High Performance Petroleum Drill Bits and conventional drilling alternatives reveals significant advantages in penetration speed, operational stability, and cost effectiveness. Advanced four-blade technology delivers 25-40% faster drilling rates while extending bit life by 80% compared to traditional designs. These performance improvements translate directly into reduced drilling costs and enhanced project economics across diverse applications.
Material engineering excellence, precision manufacturing standards, and optimized hydraulic design combine to create drilling solutions that excel in medium hardness formations. The versatile performance characteristics make four-blade wing technology suitable for oil and gas exploration, geothermal projects, and various mining applications. Investment in advanced drilling technology represents a strategic decision that delivers measurable returns through improved efficiency and reduced operational expenses.
Partner with HNS for Superior Four Blade Wing Drill Bit Solutions
Shaanxi Hainaisen Petroleum Technology Co., Ltd. stands as a trusted Four Blade Wing High Performance Petroleum Drill Bit manufacturer with over a decade of specialized experience in advanced drilling technology. Our state-of-the-art 3,500m² facility houses modern production workshops equipped with 5-axis machining centers and CNC machine tools that ensure precision manufacturing of every drill bit component.
Our dedicated research and development team collaborates closely with clients to design custom drilling solutions tailored to specific geological conditions and operational requirements. Whether you need standard configurations for common formations or specialized designs for challenging drilling environments, HNS delivers engineering excellence that maximizes your drilling performance.
Quality represents our fundamental commitment to every client relationship. Our ISO 9001:2015 certified quality management system guarantees consistent excellence throughout the manufacturing process, from raw material selection through final product inspection. Rigorous testing protocols verify performance specifications and dimensional accuracy before delivery.
Technical support extends beyond product delivery, with our expert engineers providing operational guidance and performance optimization recommendations. We understand that successful drilling operations require more than quality equipment – they demand comprehensive technical partnership and responsive customer service.
Ready to experience the performance advantages of advanced four-blade wing technology? Our team is prepared to discuss your specific drilling requirements and recommend optimal solutions for your operational challenges. Contact us at hainaisen@hnsdrillbit.com to explore how HNS drill bit technology can enhance your drilling efficiency and reduce operational costs.
