What Sets a 5 Blades PDC Oil Bit Apart From Higher Blade Count Bits?

The 5 Blades PDC Oil Bit is a game-changer when it comes to drilling efficiency and performance in the oil and gas industry. It may seem that greater blade count bits are the best choice for more cutting power, but the 5-blade design has a unique blend of cutting efficiency, stability, and versatility that makes it stand out from the others. The best thing about it is that its design has been improved to allow for better penetration rates while keeping it stable and eliminating vibration. The 5 Blades PDC Oil Bit is a great choice for a wide range of formation types, from soft to medium-hard, because it strikes the optimum balance between cutting aggressiveness and control. Also, because there are fewer blades than in higher configurations, the garbage slot regions are bigger, which makes it easier to get rid of cuttings and makes the hydraulics work better. This mix of qualities not only makes drilling faster, but it also makes the bit last longer and lowers the overall cost of drilling. This makes the 5 Blades PDC Oil Bit a popular choice for many drilling operations in a variety of geological environments.

Optimized Design for Enhanced Performance

How the blades are set up and how they cut

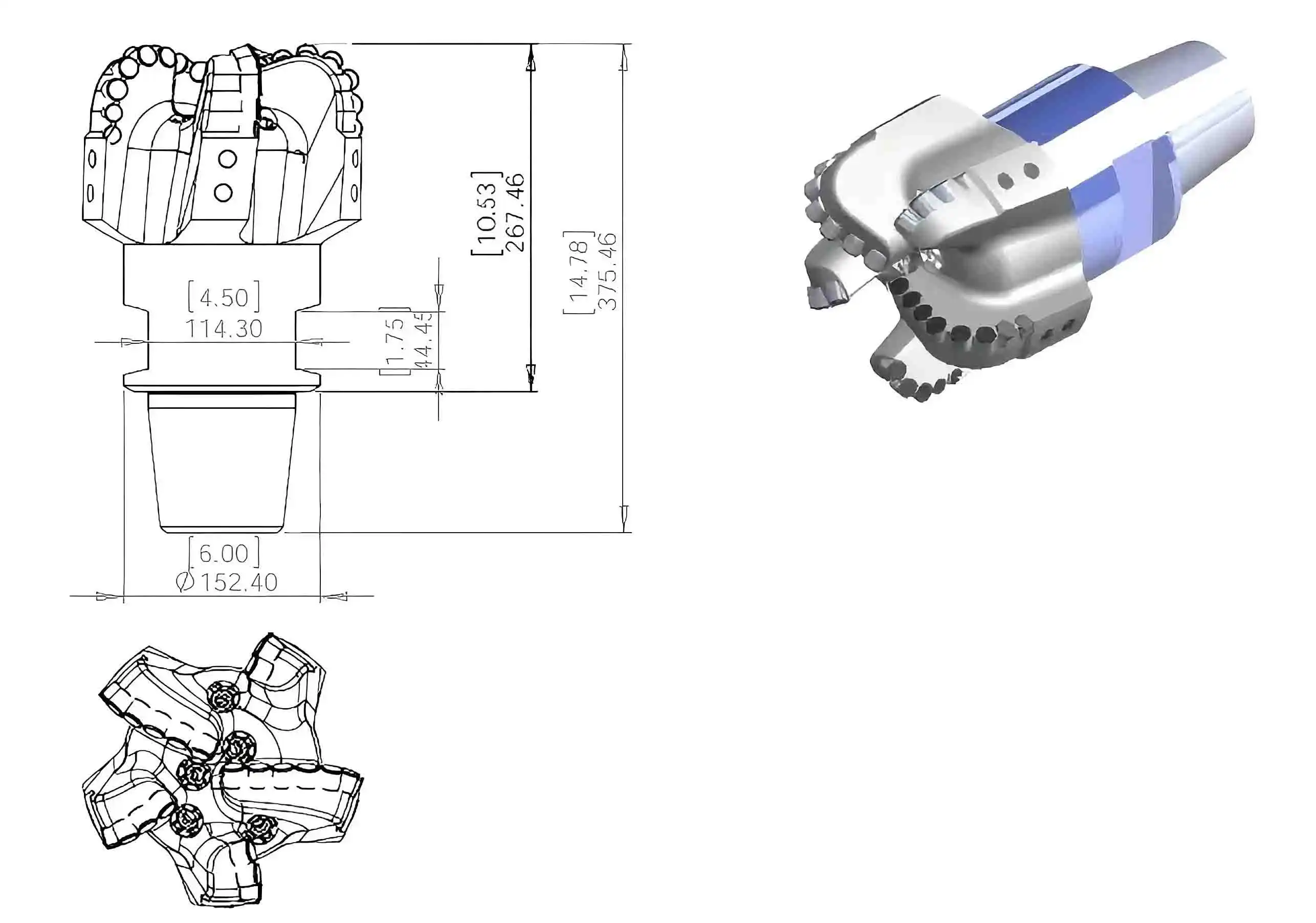

The 5 Blades PDC Oil Bit is a carefully designed blade configuration that makes cutting as efficient as possible while keeping the bit's structure strong. The five blades are placed in a way that spreads the cutting forces evenly, which lowers stress on each part and makes the bit more stable overall. This setup also lets you utilize bigger, stronger PDC cutters, which make the tool last longer and work better at cutting through tough materials (ROP).

The cutting structure of the 5-blade design uses sophisticated PDC cutter technology and high-quality polycrystalline diamond compact cutters. These cutters are placed in a way that maximizes formation interaction and makes it easy to remove rock. Compared to configurations with more blades, the lower number of blades provides for broader garbage slot areas between blades. This makes it easier to remove cuttings and lowers the possibility of bit balling in sticky formations.

Improving hydraulics

The 5 Blades PDC Oil Bit's efficient hydraulic design is one of its best features. The 5-blade design makes the garbage slot sections bigger, which lets fluids flow better and makes it easier to get rid of cuttings. With higher hydraulic efficiency, hole cleaning is easier, the risk of bit balling is lower, and drilling speeds are faster.

The nozzle on the bit is carefully placed and angled so that it sends drilling fluid exactly where it needs to go. This focused method makes sure that the PDC cutters stay cold, which extends the life of the bit and makes it easier to get rid of cuttings from the cutting face and bottom of the hole. This makes the drilling environment more stable and keeps the bit running at a high level of performance.

Versatility Across Formation Types

Ability to adjust to many types of lithologies

The 5 Blades PDC Oil Bit is quite flexible and works well with many different types of formations. It can drill well in soft, medium, and even some tougher formations, which makes it a great choice for wells with interbedded lithologies. The 5-blade configuration's balanced aggressiveness gives it the cutting power to easily penetrate softer formations while keeping the stability needed to get through stronger stringers or transitions.

This flexibility is especially useful in horizontal and directional drilling, where it's important to keep a steady ROP and directional control across different types of formations. The bit's capacity to manage variations in formation without having to make numerous excursions to the bit is a big part of how much more efficient and cost-effective drilling is overall.

Options for customization

The 5 Blades PDC Oil Bit may be changed to fit unique formation needs and drilling settings, which makes it even more useful. This customisation could include changing the size, positioning, and back rake angles of the cutter, as well as the bit shape and hydraulic arrangement. These custom designs make sure that the drill works best in specific formations, which increases the efficiency of drilling and the life of the bit.

The flexibility to tweak the bit design lets operators deal with problems that come up in certain geological situations or drilling programs. The 5-blade arrangement is a good choice for many types of drilling projects, from exploratory wells to development drilling in established fields, because it is so flexible.

Impact on Drilling Economics

Improved Rate of Penetration (ROP)

One of the best things about the 5 Blades PDC Oil Bit is that it can penetrate faster than many other bits with more blades. The redesigned cutting structure and efficient hydraulics make drilling faster and more aggressive without losing stability or control. This higher ROP means that drilling takes less time and costs less overall to build the well.

The design of the bit makes sure that it works well throughout the run, even as it wears down. This steady performance is especially useful in lengthy lateral sections or when drilling into hard rocks, where keeping a high ROP can have a big effect on the entire cost of the drilling operation.

Longer Bit Life and Fewer Trips

The 5 Blades PDC Oil Bit lasts longer since it is strong and resistant to wear. This means that it can run longer and make fewer trips. The bit can handle the tough job of drilling through different types of formations without wearing out or breaking too soon because of its strong blade design and high-quality PDC cutters. This lengthy life not only cuts down on the price of replacing bits, but it also cuts down on the time spent on tripping procedures that aren't productive.

Fewer bit trips save a lot of time and money, especially in deep ocean or isolated onshore operations where rig time is very valuable. Drilling lengthier portions with a single bit also makes the wellbore better by cutting down on the number of connections and any weak spots in the well construction process.

Cost Effectiveness Overall

The 5 Blades PDC Oil Bit is a great deal when you look at the whole economic picture. Lower overall drilling costs per foot come from quicker drilling rates, longer bit life, and fewer tripping operations. The bit's adaptability makes it even more cost-effective because it can cut down on the need for several specialized bits in wells with different formation characteristics.

Also, the 5-blade design makes drilling more efficient and cuts down on non-productive time, which can speed up project timeframes. This speed-up might have big economic effects, such as allowing oil and gas enterprises to start producing sooner and get their money back faster.

Conclusion

The 5 Blades PDC Oil Bit is a big step forward in drilling technology because it combines performance, versatility, and cost-effectiveness in a way that no other bit does. Its improved design creates a compromise between strong cutting action and stability, making it appropriate for a wide range of formation types and drilling conditions. The higher ROP, longer bit life, and fewer trips needed for bits all lead to big savings and better overall drilling economics.

The 5-blade arrangement is a great choice for oil and gas firms, service providers, and drilling contractors who want to make their operations as efficient as possible. It is an essential tool in today's difficult drilling conditions because it can consistently produce high-quality findings over a wide range of lithologies.

FAQ

1. What are the best working conditions for a 5-blade PDC Oil Bit?

The best settings for a 5-blade PDC Oil Bit are usually rotating speeds between 60 and 250 RPM, drilling pressures between 30 and 180 KN, and flow rates between 45 and 80 LPS. But these numbers can change depending on the type of deposit and the conditions of the drilling.

2. How well does the 5 Blades PDC Oil Bit work in challenging rock formations?

The 5 Blades PDC Oil Bit is mostly made for soft to medium-hard formations, but it can also drill through harder stringers if it is set up correctly. It can keep up reasonable penetration rates in moderately hard rocks since it is stable and cuts well. However, for drilling persistently hard rock, specialist bits may be better.

3. Is it possible to utilize the 5 Blades PDC Oil Bit for directional drilling?

The 5 Blades PDC Oil Bit is a good choice for both horizontal and directional drilling. Its balanced design gives it the stability it needs to keep its trajectory while also giving it the cutting power it needs to drill efficiently in these tough conditions.

4. What kinds of materials are used to make a 5-blade PDC Oil Bit?

The 5 Blades PDC Oil Bit usually has a strong steel body that lasts a long time, modern PDC cutters that cut better, and a tungsten carbide matrix that makes it last longer. You can change the individual materials and their proportions based on how you want to use them and the qualities of the formation.

5 Blades PDC Oil Bit Manufacturers | HNS

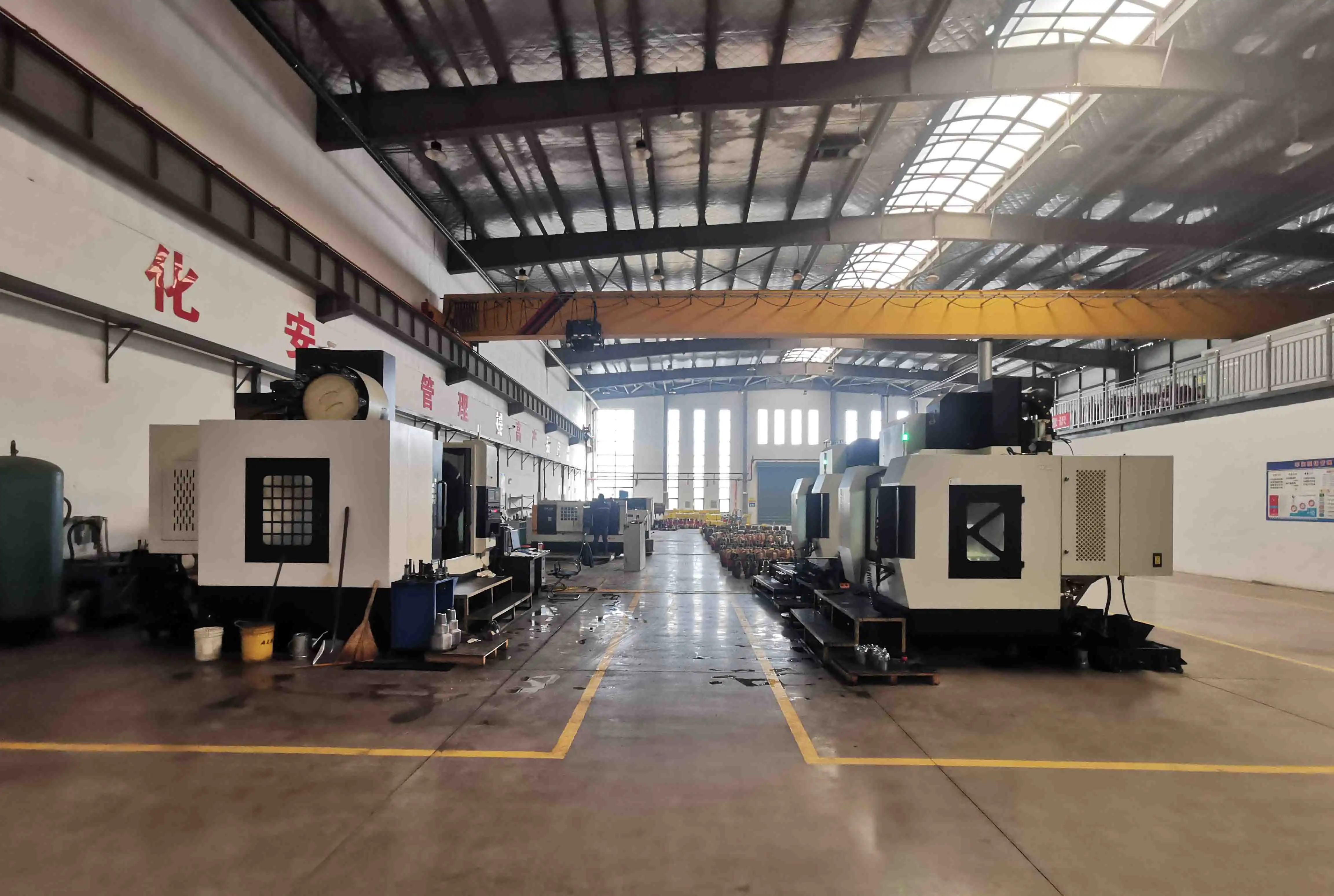

Are you looking for a dependable maker of 5-blade PDC Oil Bits that work well? Shaanxi Hainaisen Petroleum Technology Co., Ltd. is the place to go. We are one of the best suppliers in the business, and we offer the most advanced drilling solutions that are made just for you. Our cutting-edge factory and skilled research and development staff make sure that every bit fulfills the highest requirements for quality and performance.

Our customisable 5 Blades PDC Oil Bits may greatly improve your drilling efficiency and lower your operating expenses, whether you are in oil and gas extraction, coal mining, or geological exploration. Don't settle for solutions that work for everyone. See how customized drilling technology can change the way you do business.

Are you ready to improve your drilling? Get in touch with our professional team at hainaisen@hnsdrillbit.com today to talk about your specific needs and find out how our 5 Blades PDC Oil Bits can change the way you drill. Let's work together to make your drilling as efficient as possible and help your project succeed.
