Advantages of Directional Three Blade PDC Drill Bit in HDD operations
Directional Three Blade PDC Drill Bits are a big step forward in horizontal directional drilling (HDD) technology. They provide better steering control, faster penetration rates, and long-lasting performance in tough underground circumstances. When you combine the accuracy of polycrystalline diamond compact cuts with the best three-blade shape, you get unbeatable performance in a wide range of rock types, from soft clay to medium-hard rock. The strategic blade configuration balances cutting forces while keeping direction accuracy. This makes these bits essential for complicated underground projects that need accurate trajectory control and high working efficiency.
Understanding Directional Three Blade PDC Drill Bits in HDD Operations
The Three Blade PDC Drill Bit is at the heart of this shift in directional drilling technology, which has changed how we work on projects underground. When you use these high-tech tools for horizontal directional drilling, they work really well because they have a precision-engineered blade shape and polycrystalline diamond compact technology.
Design Engineering and Blade Configuration
When the three blades are put together, they form a triangle shape that makes the structure stable while digging. This geometric design spreads the cutting forces out evenly across the bit face, which keeps the bit in contact with the shape and reduces vibration. Each blade has PDC cuts that are placed in a way that makes them work together to make a smooth, effective cutting action while keeping directional control.
The IADC S433 standard shows that we are dedicated to providing the best tech possible. Our 6-inch (152.4 mm) directional bits have three blades that are all perfectly placed and designed to cut as efficiently as possible. The 13mm PDC cutters are spread out over 61 cutting points, which makes sure that the bit engages the whole structure while keeping its structural integrity.
Working Principles in Diverse Geological Formations
These digging tools work great in a wide range of rock types, from soft sedimentary layers to medium- to hard consolidated rock. The polycrystalline diamond compact cutters stay sharp a lot longer than traditional carbide options. This means that they can keep digging at the same rate for long periods of time. The three-blade design makes bigger paths for trash to exit than multi-blade designs, so cuttings don't build up and slow down the drilling process.
The 220 mm height and 65 mm gauge length make it easy to move the weight around while drilling. This setup makes sure that downward pressure moves smoothly through the cutting structure while keeping the steadiness needed for controlling the direction. For safe sending of power from the drilling string, the 3-1/2 REG.PIN link meets industry standards.
Key Advantages of Directional Three Blade PDC Drill Bits in HDD
Today's drilling jobs need tools that consistently do their job while keeping costs as low as possible. These needs are met by directional three Blade PDC Drill Bits, which have a number of important benefits that have a direct effect on the success of the project and the company's bottom line.
Enhanced Drilling Efficiency and Speed
Three Blade PDC Drill Bits have a better rate of entry than other drilling tools because they have an improved cutting structure. The balanced blade design lowers the amount of torque needed while still cutting aggressively, which speeds up the process of reaching goal depths. In real life, using these bits shows that they can penetrate 20–30% deeper than regular tricone bits in the same types of formations.
Our engineering team has recorded big gains in performance across a number of different apps. When switching from regular bits to our three-blade PDC design, workers said they cut down on drilling time and got better hole quality while digging for coal bed methane. The better cutting efficiency directly leads to lower costs and faster project completion times.
Superior Directional Control and Steering Accuracy
It is still very important for HDD operations to keep precise direction control, especially when going around existing structures or reaching specific target zones. With three blades, the design gives you great turning response while keeping the hole stable. The triangular cutting pattern makes even contact with the formation, which lowers the chance of bit walk or deviating from planned paths.
Engineering data shows that three Blade PDC Drill Bits keep their direction accuracy within narrower limits than other designs. This level of accuracy is very important when digging under crowded areas or to reach certain geological layers. The steady cutting action cuts down on direction changes, which makes the holes smoother and increases the drilling efficiency.
Extended Service Life and Durability
Our three Blade PDC Drill Bits have a much longer useful life than other options because they are made of high-quality materials. When you mix high-strength steel bodies with modern PDC cutters, you get great wear protection in tough drilling conditions. The strong construction can handle the mechanical pressures that come with directional drilling and keeps cutting performance high during long operations.
Cost-benefit analyses of several drilling operations show that the longer service life of three Blade PDC Drill Bits lowers total drilling costs by cutting down on bit trips and downtime. According to operators, these bits can drill 30–50% farther than regular bits before they need to be replaced.
Comparing Three Blade PDC Drill Bits with Other Drill Bit Types
Learning about how different types of drill bits work helps people who work in buying make smart choices based on the needs of the project and the rock conditions.
Three-Blade vs. Multi-Blade PDC Configurations
Four- and five-blade PDC bits have more cutting surface area, but the three-blade form is the best compromise between cutting speed and debris removal. When there are three blades, the bigger gaps between them make it easier to remove cuts, keep the bit from balling up, and keep the penetration rates steady. This benefit is especially clear in sticky or clay-rich rocks, where the buildup of waste can make drilling much more difficult.
Having fewer blades also makes it easier while keeping the structure's strength. This way of thinking about design makes production cheaper without lowering quality. This makes Three Blade PDC Drill Bits a good choice for businesses that want to save money without sacrificing quality.
Performance Comparison with Tricone Bits
Tricone roller bits have been used in drilling for many years, but three Blade PDC Drill Bits are better for soft to medium-hard rocks. The constant cutting action of PDC cutters makes drilling smoother than the crushing action of tricone bits. This leads to better hole quality and less sound. PDC designs don't have any moving parts, so they need less upkeep and have fewer places where things can go wrong.
When the tensile strength of the rock is less than 25,000 psi, Three Blade PDC Drill Bits always work better than tricone bits in terms of both penetration rate and bit life. Tricone teeth break down over time and become less useful, but the fake diamond cutting elements stay sharp during long drilling campaigns.
Application-Specific Selection Criteria
To choose the right drill bit, you need to carefully think about the project goals, the drilling factors, and the features of the rock. Three Blade PDC Drill Bits work great for tasks that need exact direction control, like installing utilities under city streets or cleaning up the environment. These bits are great for projects that need to be very accurate with their paths because they cut well and respond quickly to direction.
Formation logs and geological studies are very important for bit selection. Three Blade PDC Drill Bits work best in rocks that are mostly the same roughness and don't have a lot of abrasive material in them. When buying, teams know these factors, and they can choose the best drilling tools for their needs.
Procurement Insights for Three Blade PDC Drill Bits
Good buying strategies make sure that drilling operations get high-quality tools that work as expected and keep the project's costs as low as possible. Knowing about important things to think about when buying something helps people find their way around the complicated world of drilling tool sellers and product specs.
Supplier Evaluation and Quality Assurance
To find trusted providers, you need to look at their manufacturing skills, quality control systems, and industry qualifications. Leading makers make sure their factories are ISO-certified and use strict testing methods to make sure the quality of their products is always the same. Our current 3,500m² building, which is full of 5-axis machining centers and powerful CNC machine tools, shows that Shaanxi Hainaisen Petroleum Technology Co., Ltd. lives up to these standards.
Quality assurance includes more than just making things; it also includes finding materials and heating them up. Premium-grade steel bodies and carefully chosen PDC cuts are put through a lot of tests to make sure they work well and are the right size. These quality controls make sure that the goods that are given meet or go beyond the performance standards that were set.
Customization Options and Technical Support
These days, drilling operations often need unique solutions that are made to fit the geology or the limitations of the operation. Manufacturers with a lot of experience can help engineers make the best bit designs for different uses, such as ones with custom cutter plans, unique blade shapes, or changed hydraulic features. Our focused research and development team works with clients to create custom bit designs that solve drilling problems that are unique to each job.
Technical support services include advice before the sale, application building, and performance analysis after the drill. This all-around method helps operators get the most out of bit speed while also finding ways to make things even better. Getting expert help from suppliers on a regular basis through partnerships adds value beyond the original purchase.
Logistics and Inventory Management
Logistics planning and product management need to be done very carefully for international drilling activities. Knowing how to ship, what customs rules apply, and how long it takes to send keeps operations running smoothly and makes sure tools are available when they're required. Building ties with suppliers who keep inventory in key places can cut shipping times for urgent needs by a large amount.
When you buy in bulk, you usually save money and make sure that the product is always available. But the costs of keeping inventory must be weighed against bulk savings and the need to ensure supply security. Procurement teams with a lot of experience come up with inventory strategies that keep working freedom while lowering the total cost of ownership.
Integrating Quality and Reliability: HNS Directional Three Blade PDC Drill Bit Solutions
Because we are dedicated to innovation, quality, and customer service, Shaanxi Hainaisen Petroleum Technology Co., Ltd. has become a valued partner for drilling pros all over the world. Our all-around method to designing and making products makes sure that customers get drilling tools that are perfect for their needs.
Advanced Manufacturing Capabilities

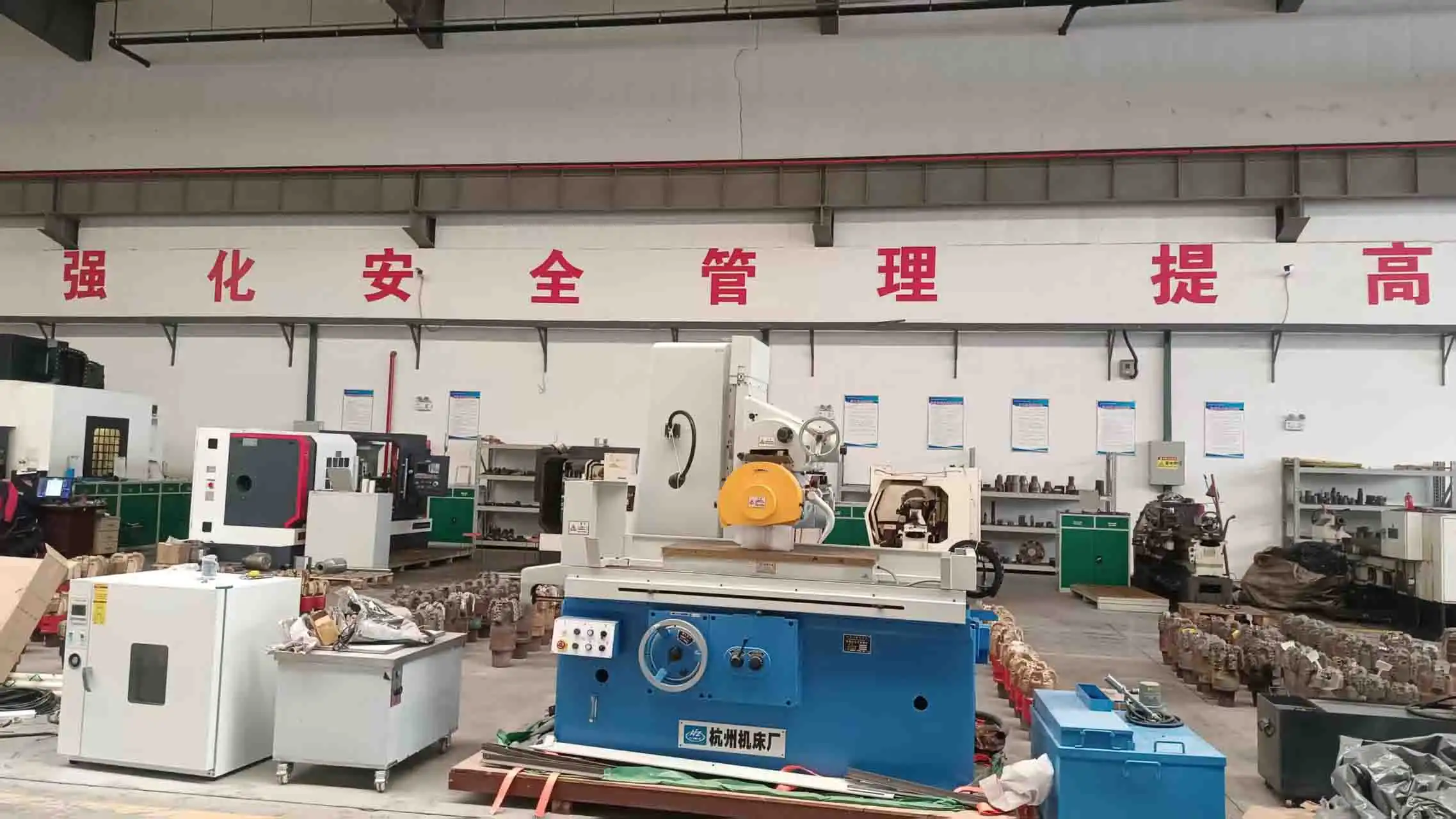

Our production center is state-of-the-art and uses the newest technologies to make sure that the drilling tools we make are always of the highest quality. Advanced CNC machining centers make it possible to make complicated shapes accurately while keeping tight limits on the sizes. During the whole manufacturing process, automated welding production lines make sure that the quality of the joints stays the same and the structure stays strong.
Modern quality control systems are built into every step of our production process. This stops mistakes before they happen and makes sure that final goods meet strict performance standards. Statistical process control methods keep an eye on important measurements and material traits, which lets you objectively check the quality of the product before it ships.
Technical Innovation and Product Development
Three Blade PDC Drill Bit shape and performance of three-blade PDC drill bits are always getting better because of ongoing research and development. Before making a sample, our engineering team uses advanced modeling tools to make sure that cutting structures and hydraulic flow patterns work best. This method cuts down on the time it takes to develop while still making sure that new designs improve performance in a way that can be measured.
Working with partners in business and in academia helps us make sure that our research and development are in line with new technologies and changing market needs. This way of thinking about the future makes sure that our products stay at the cutting edge of drilling technology and meet the changing needs of our customers.
Comprehensive Customer Support
Our method of putting the customer first goes beyond just making products and includes full support services as well. Customers can get help choosing the best drilling tools for their needs before they buy them, and ongoing expert support makes sure they work at their best. Services for performance tracking and research find ways to make processes better and cut costs.
Support after the sale includes upkeep advice, suggestions for improving performance, and services for analyzing failures. This all-around method helps customers get the most out of the money they spend on drilling tools and builds long-lasting relationships based on success for both sides.
Conclusion
Directional Three Blade PDC Drill Bits are the best way to do current HDD tasks that need to be precise, efficient, and reliable. The balanced three-blade design gives you better control over the direction of the flow while also giving you higher entry rates and longer service life. These drilling tools are necessary for underground projects to go smoothly because they have many performance benefits, such as better dirt removal, more accurate guiding, and lower operating costs. As drilling operations face more difficult problems, three-blade PDC technology has been shown to be effective in ensuring operational success while also maximizing project costs and reducing environmental impact.
FAQ
Q1: How do geological factors affect the lifespan of three blade PDC drill bits?
Formation characteristics significantly influence bit performance and operational life. Abrasive formations containing quartz or other hard minerals accelerate cutter wear, while softer sedimentary rocks allow extended drilling distances. Formation consistency also impacts performance, as alternating hard and soft layers create varying stress conditions that can affect bit stability and cutting efficiency.
Q2: What types of soil and rock formations are compatible with three blade PDC bits?
Three blade PDC bits excel in soft to medium formations, including clay, shale, sandstone, and limestone with compressive strengths up to 25,000 psi. These bits perform optimally in formations with relatively consistent hardness and minimal abrasive content. Highly consolidated rocks or formations with significant abrasive minerals may require specialized cutter grades or alternative bit designs.
Q3: What maintenance practices optimize the performance of three blade PDC drill bits?
Proper maintenance begins with careful inspection before each run, checking for damaged cutters, worn gauge areas, and hydraulic flow restrictions. During operations, monitoring drilling parameters such as torque, weight on bit, and penetration rate helps identify performance changes that may indicate bit wear. Post-drilling cleaning and inspection enable assessment of cutter condition and identification of any damage requiring attention.
Q4: How do three blade PDC bits perform in different HDD applications?
Performance varies based on specific application requirements and geological conditions. Utility installations beneath urban areas benefit from the precise directional control provided by three-blade designs, while longer drilling campaigns take advantage of extended bit life. Water well drilling operations appreciate the consistent penetration rates and reduced trip frequency, while oil and gas applications value the superior steering response in complex trajectories.
Partner with HNS for Superior Three Blade PDC Drill Bit Solutions
HNS delivers industry-leading directional drilling solutions through our advanced Three Blade PDC Drill Bit technology and comprehensive customer support. Our proven manufacturing excellence, combined with innovative engineering and reliable supply chain management, ensures your HDD projects achieve optimal performance and cost efficiency. Contact our technical team at hainaisen@hnsdrillbit.com to discuss your specific drilling requirements and discover how our Three Blade PDC Drill Bit manufacturer capabilities can enhance your operations. Visit hnsdrillbit.com to explore our complete product portfolio and request customized solutions tailored to your geological conditions and project objectives.
