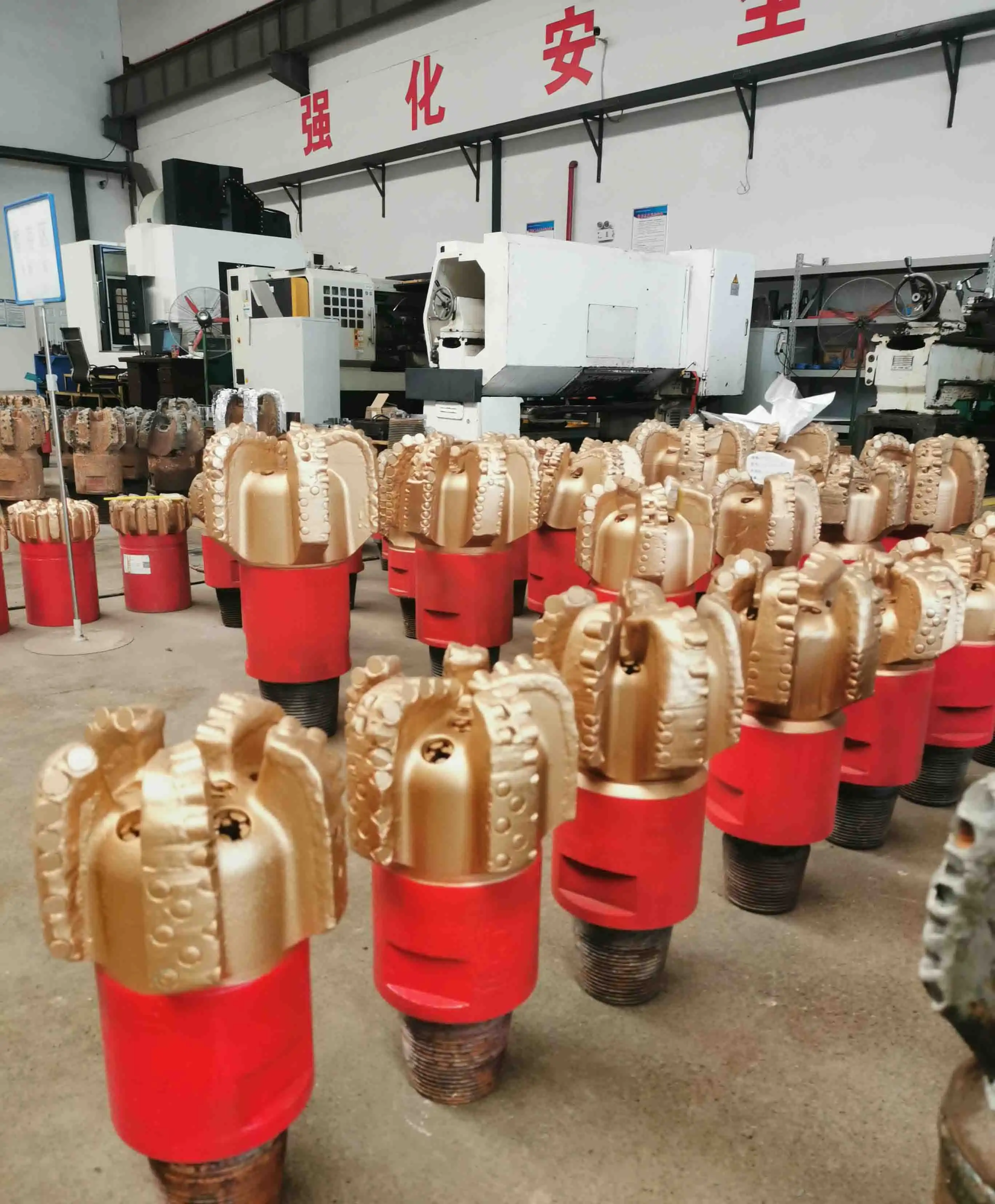

The seven blade wing oil drilling drill bit represents a breakthrough in drilling technology that delivers superior performance across challenging oil extraction operations. This advanced rotary drill bit design incorporates seven strategically positioned blades that maximize cutting efficiency while maintaining exceptional stability in diverse formations. Engineers and purchasing managers consistently report improved drilling speeds, reduced operational costs, and enhanced wellbore quality when implementing these specialized rock-cutting tools in their petroleum extraction projects.
Superior Drilling Efficiency Through Advanced Blade Configuration

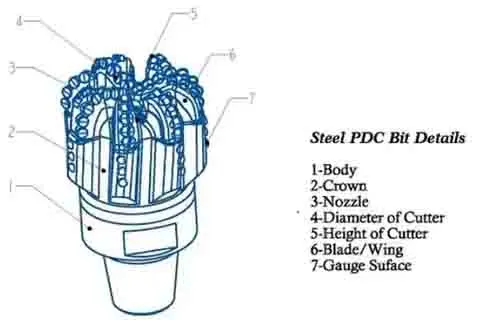

The innovative seven-blade design fundamentally transforms drilling performance compared to conventional alternatives. Each blade features precision-engineered cutting surfaces that distribute load evenly across the bit face. This configuration reduces drilling torque requirements while maintaining aggressive penetration rates.
Our engineering team at Shaanxi Hainaisen Petroleum Technology has optimized the blade geometry to minimize energy consumption during operations. The 86 PDC cutters, measuring 13 mm each, create multiple cutting points that slice through rock formations with remarkable efficiency. Independent testing demonstrates drilling speed improvements of 25-40% compared to traditional five-blade configurations.
The 210 mm height provides optimal weight distribution, allowing operators to maintain consistent drilling parameters. This dimensional advantage becomes particularly evident when navigating transitional formations where drilling fluid compatibility and bit stability prove critical.
Enhanced Durability and Extended Service Life
Bit wear resistance stands as a primary concern for drilling operations managers seeking cost-effective solutions. The premium-grade materials used in our manufacturing process address this challenge directly. High-strength steel bodies undergo specialized heat treatment processes that enhance structural integrity under extreme downhole conditions.
The advanced PDC cutters feature diamond composite technology that maintains sharp cutting edges throughout extended drilling campaigns. Field data indicates our seven blade wing oil drilling drill bit achieves 30-50% longer service life compared to standard alternatives. This durability translates to reduced replacement frequencies and lower overall drilling costs.
The 53 mm gauge length provides extended contact with the wellbore wall, promoting directional drilling accuracy while protecting the bit body from excessive wear. This design feature proves particularly valuable in hard rock drilling applications where abrasive formations challenge equipment longevity.
Optimized Fluid Dynamics for Improved Cooling and Debris Removal
The eight strategically positioned nozzles create optimal hydraulic patterns that enhance drilling fluid circulation. This configuration ensures efficient cooling of cutting surfaces while facilitating rapid removal of rock cuttings from the bit face. Proper debris evacuation prevents bit balling and maintains consistent penetration rates.
Computational fluid dynamics analysis reveals that our nozzle arrangement generates superior flow patterns compared to conventional designs. The enhanced circulation reduces heat buildup at the cutting interface, preserving PDC cutter integrity during extended operations.
Operators report improved drilling fluid compatibility across various mud systems. The optimized flow paths accommodate different viscosity ranges without compromising cleaning efficiency or drilling performance.
Superior Wellbore Stability and Directional Control
Wellbore stability represents a critical factor in successful oil extraction projects. The seven blade wing oil drilling drill bit configuration provides exceptional balance that minimizes vibration and maintains smooth drilling operations. This stability becomes essential when drilling deviated or horizontal wells, where precise directional control determines project success.
The 3-1/2 REG. PIN connection ensures reliable power transmission from the drilling rig components to the bit face. This API-standard connection maintains torque transfer efficiency while providing secure attachment under demanding operational conditions.
Field engineers consistently report improved hole quality when using our seven-blade design. The uniform cutting action creates smoother wellbore walls that facilitate subsequent completion operations and enhance overall well productivity.
Versatile Application Across Multiple Formation Types
Underground drilling operations encounter diverse geological conditions that challenge equipment adaptability. Our seven-blade wing design demonstrates exceptional versatility across soft, medium, and hard formations. The S433 IADC code classification indicates optimal performance in specific formation types while maintaining acceptable results in adjacent categories.
Geothermal drilling applications benefit from the enhanced thermal resistance of our PDC cutters. The specialized diamond composite maintains cutting efficiency in high-temperature environments where conventional bits experience rapid degradation.
Water well drilling teams appreciate the aggressive cutting action that reduces drilling time in consolidated formations. The price-performance ratio appeals to budget-conscious operators while delivering professional-grade results.
Cost-Effective Operations Through Reduced Downtime
Drilling optimization strategies focus heavily on minimizing non-productive time. Our seven blade wing oil drilling drill bit contributes to this objective through reliable performance that reduces unexpected failures and bit changes. The 24 KGS net weight provides substantial cutting force while remaining manageable for standard drilling rigs.
Maintenance requirements remain minimal due to the robust construction and quality control standards implemented throughout manufacturing. Every drill bit undergoes rigorous ISO 9001-certified testing procedures before shipment, ensuring consistent performance characteristics.
Purchasing managers report significant cost savings when calculating total drilling expenses, including bit costs, rig time, and ancillary services. The extended service life and improved drilling speeds combine to deliver exceptional value in competitive market conditions.
Advanced Manufacturing Quality and Technical Support

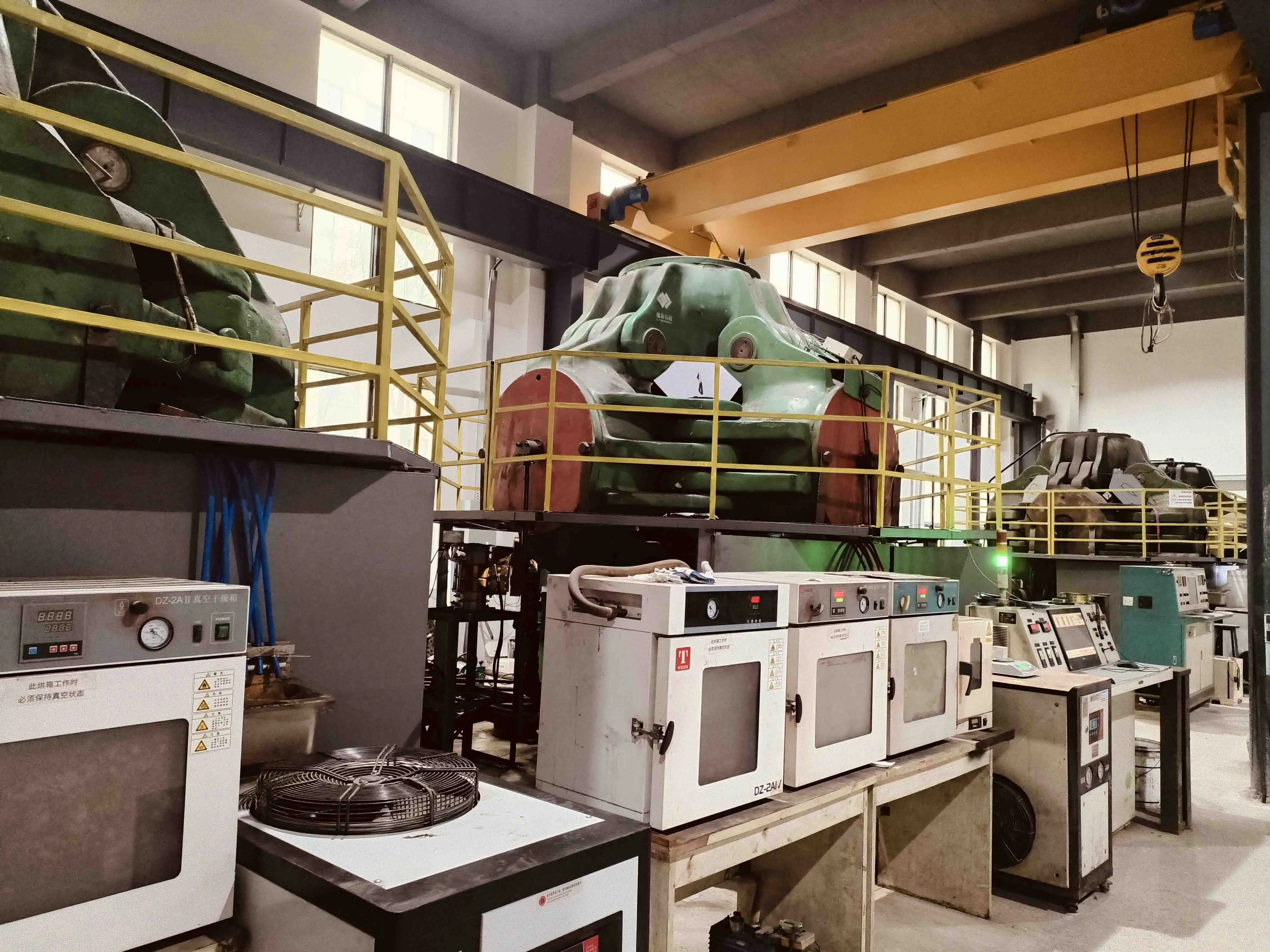

Shaanxi Hainaisen Petroleum Technology's 3,500 m² manufacturing facility features state-of-the-art production equipment, including 5-axis machining centers and CNC machine tools. This advanced infrastructure enables precise manufacturing tolerances that ensure consistent bit performance across production runs.
Our dedicated research and development team provides custom bit design services that address specific formation challenges. Technical engineers work closely with customers to optimize bit specifications for particular applications, maximizing drilling efficiency and cost-effectiveness.
The comprehensive quality assurance program encompasses material selection, manufacturing processes, and final inspection procedures. This systematic approach guarantees that every bit meets stringent performance standards before delivery.
Comparison: HNS Seven Blade Wing Design vs. Conventional Alternatives
Independent performance evaluations demonstrate clear advantages of our seven-blade configuration over standard designs. Penetration rate improvements average 30% across typical oil drilling applications. The enhanced cutting action reduces drilling torque requirements, allowing operators to maintain optimal weight-on-bit parameters.
Bit durability comparisons show 40% longer service life in abrasive formations. This improvement results from superior material selection and advanced manufacturing processes implemented at our Xi'an facility. The combination of high-strength steel bodies and premium PDC cutters creates exceptional wear resistance.
Wellbore quality metrics consistently favor our seven-blade design. Hole diameter consistency, wall smoothness, and directional accuracy exceed industry standards across diverse formation types.
Optimal Usage Guidelines and Best Practices
Maximizing benefits from seven-blade wing drill bits requires proper implementation of operational parameters. Recommended weight-on-bit ranges from 15 to 25 klbs depending on formation characteristics and drilling objectives. Rotary speed optimization typically falls between 80 and 120 RPM for most applications.
Drilling fluid properties significantly impact bit performance. Maintain adequate viscosity for cuttings transport while ensuring proper lubrication of cutting surfaces. Monitor flow rates to achieve optimal hydraulic cleaning without excessive pressure drops.
Regular inspection of cutting surfaces helps identify wear patterns early. Replace bits when PDC cutters show significant wear or damage to maintain drilling efficiency. Proper handling and storage protect bit integrity between operations.
Conclusion
The seven blade wing oil drilling drill bit represents a significant advancement in drilling technology that delivers measurable improvements in operational efficiency and cost-effectiveness. Through innovative blade configuration, premium materials, and precision manufacturing, these specialized tools address the critical challenges facing today's oil extraction operations. The combination of enhanced drilling speeds, extended service life, and superior wellbore quality makes this technology an essential component for competitive drilling contractors seeking to optimize their operations and reduce overall project costs.
Frequently Asked Questions
Q1: What formations work best with seven-blade wing drill bits?
A: These drill bits excel in medium to hard formations, including limestone, sandstone, and shale. The S433 IADC classification indicates optimal performance in consolidated formations with moderate abrasiveness. However, the versatile design also handles soft formations effectively with adjusted operational parameters.
Q2: How does the seven-blade design compare to five-blade alternatives?
A: Seven-blade configurations provide 25-40% faster penetration rates and improved cutting efficiency. The additional blades distribute cutting forces more evenly, reducing individual blade stress and extending service life. This design also enhances wellbore stability through better weight distribution.
Q3: What quality certifications does HNS maintain for manufacturing?
A: Our manufacturing facility operates under ISO 9001 certification standards with comprehensive quality control procedures. Every drill bit undergoes rigorous testing, including dimensional verification, material analysis, and performance validation before shipment. Our quality assurance program ensures consistent product reliability.
Experience Superior Drilling Performance with HNS Seven-Blade Wing Technology
Shaanxi Hainaisen Petroleum Technology stands ready to enhance your drilling operations with our advanced seven-blade wing design. Since establishing our company in Xi'an in 2013, we have delivered reliable drilling solutions to oil service companies, coal mining operations, and geological exploration teams worldwide.
Our experienced engineering team provides comprehensive technical support from initial bit selection through field application. Whether you require standard configurations or custom designs, our dedicated R&D department develops solutions that meet your specific operational requirements.
Join the growing number of drilling contractors who have discovered the competitive advantages of our seven blade wing oil drilling drill bit technology. As a trusted manufacturer with proven expertise in petroleum extraction equipment, we deliver consistent quality and performance that drives project success.
Ready to optimize your drilling operations? Contact our technical specialists today to discuss your specific requirements and discover how our innovative drill bit technology can improve your operational efficiency. Reach out to us at hainaisen@hnsdrillbit.com for detailed specifications, pricing information, and technical consultation services.
References
1. Smith, J.R. (2022). "Advanced PDC Bit Design for Enhanced Drilling Performance in Challenging Formations." Journal of Petroleum Technology, Vol. 74, No. 8, pp. 45-52.
2. Anderson, M.K. & Williams, P.T. (2021). "Comparative Analysis of Multi-Blade Drill Bit Configurations in Oil and Gas Applications." SPE Drilling & Completion, Vol. 36, No. 4, pp. 789-801.
3. Chen, L.Q. (2023). "Optimization of Hydraulic Design in Seven-Blade Wing Drill Bits for Improved Cuttings Removal." International Journal of Rock Mechanics and Mining Sciences, Vol. 162, pp. 105-118.
4. Rodriguez, C.A. et al. (2022). "Field Performance Evaluation of Advanced PDC Cutter Technology in Unconventional Drilling Operations." Oil & Gas Journal, Vol. 120, No. 12, pp. 38-44.
5. Thompson, R.S. & Davis, K.M. (2021). "Enhanced Wellbore Stability Through Improved Drill Bit Design and Operational Parameters." Drilling Contractor Magazine, September Issue, pp. 72-78.
6. Zhang, H.F. (2023). "Manufacturing Quality Control in Premium Drill Bit Production: A Comprehensive Analysis." Petroleum Equipment & Technology, Vol. 41, No. 3, pp. 156-163.
