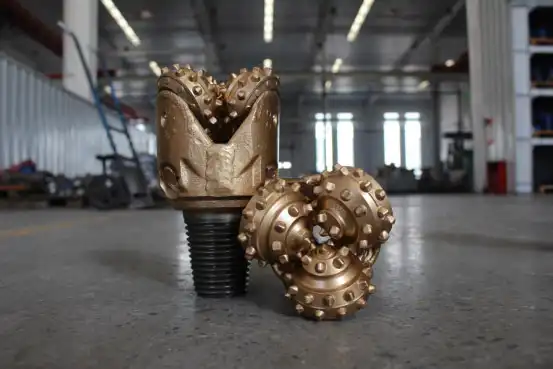

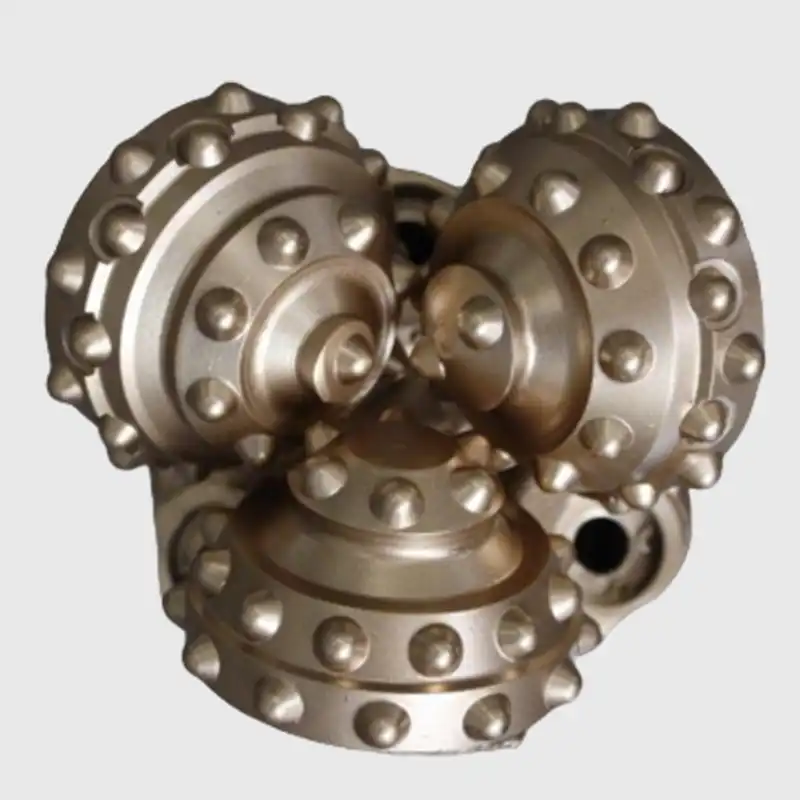

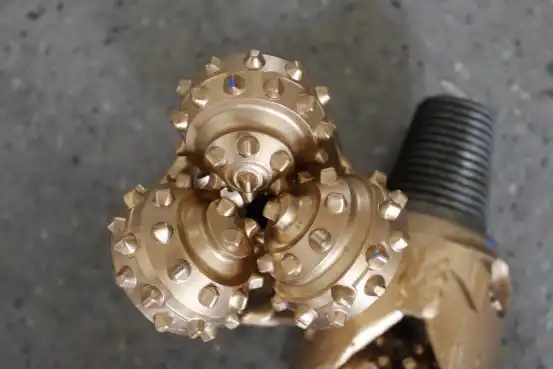

4 1/2" IADC 537 Tricone Rock Bit
- Product Description
Our 4 1/2" IADC 537 tricone bit is a workhorse for demanding hard formation drilling. Equipped with sealed journal bearings and heavy-duty tungsten carbide inserts, it crushes through tough rock (limestone, granite, compacted sandstone, etc.) with consistent penetration rates. The optimized cutter layout and hydraulic design reduce drilling vibration, boost downhole stability, and cut your overall operational costs—for vertical, directional, and horizontal wells alike.
| Parameter | Specification |
|---|---|
| Bit Size | 4 1/2" (114.3 mm) |
| IADC Code | 537 |
| Bearing Type | Sealed Journal Bearing |
| Cutter Type | Tungsten Carbide Insert |
| Body Material | High-Strength Alloy Steel |
| Connection Type | 4 1/2" API REG Pin (Customizable) |
| Nozzle Configuration | Standard (Custom Sizes Available) |
| Application Formation | Medium-Hard to Hard Rock |
| Max Drilling Depth | Up to 5000m (varies by drilling conditions) |

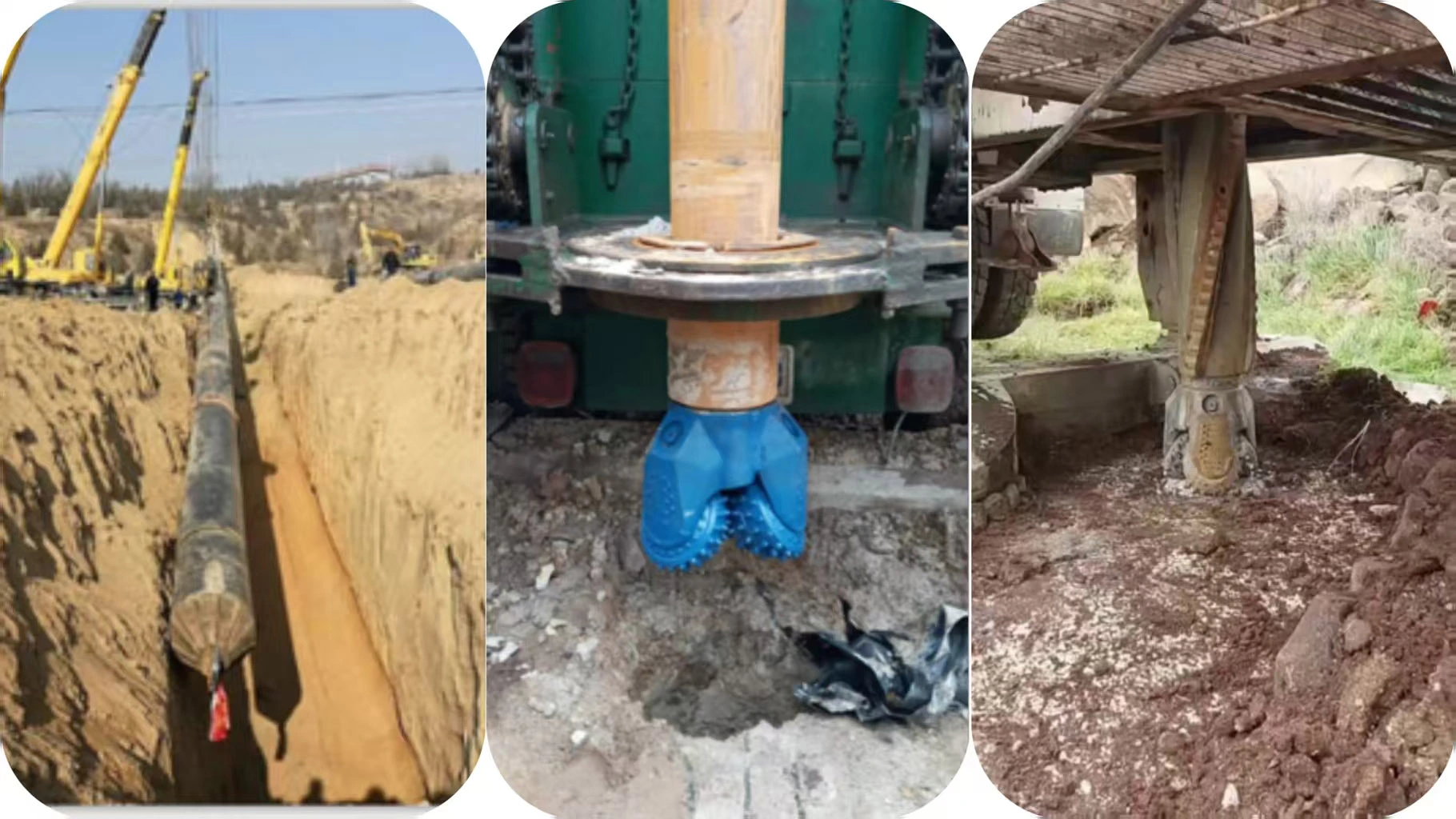

Applications
- Oil & Gas Drilling: Vertical, directional, and horizontal wells in hard reservoir formations
- Mining & Exploration: Blasthole drilling, core sampling, and mineral exploration
- Water Well Drilling: Deep hard rock aquifer drilling
- Geothermal Drilling: High-temperature hard formation well construction
- Construction & Foundation: HDD (Horizontal Directional Drilling), pile foundation work

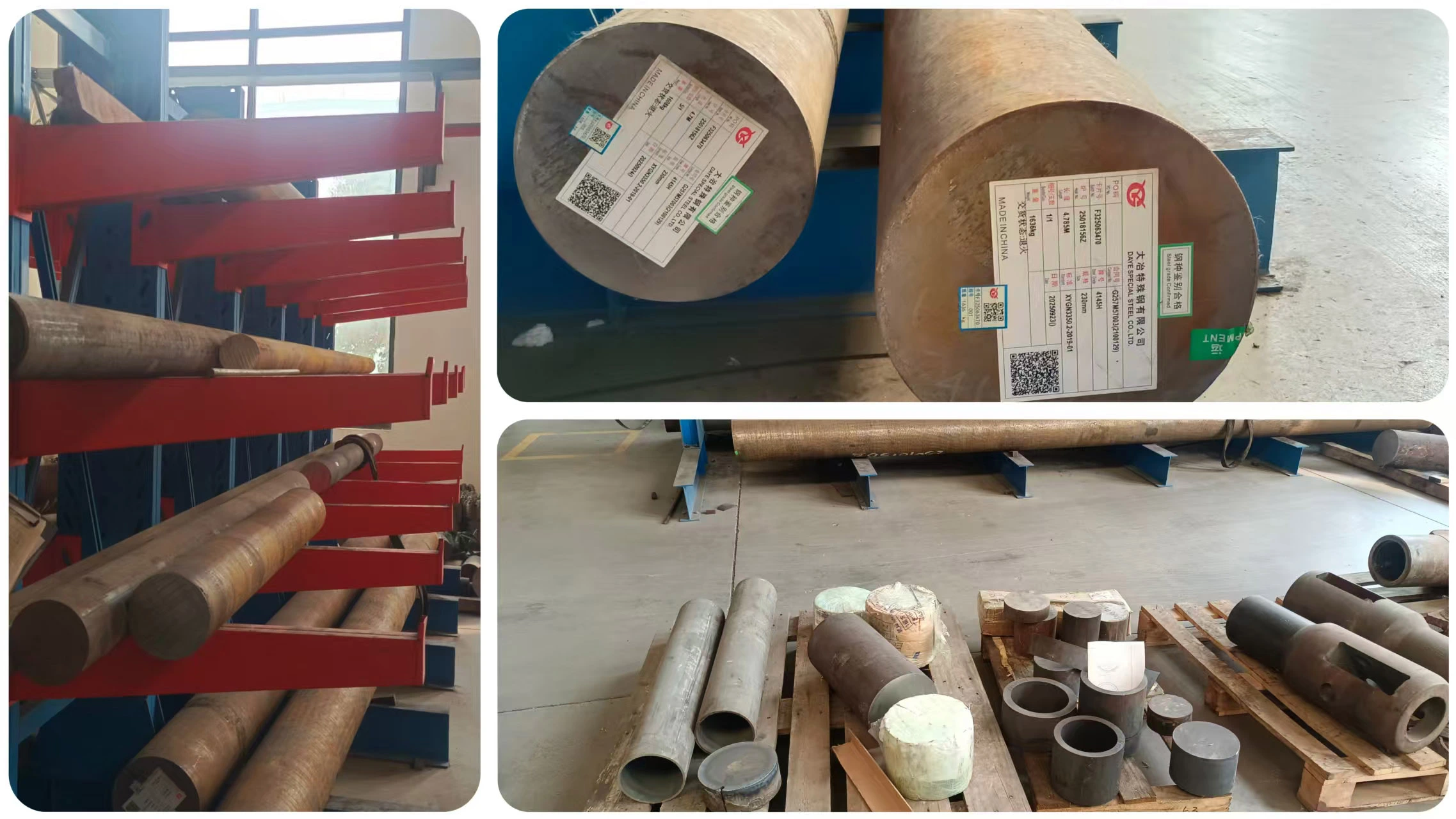

Raw Materials
- Bit Body: Premium alloy steel with high impact and fatigue resistance
- Cutting Inserts: High-grade WC-Co tungsten carbide for extreme wear/abrasion resistance
- Bearing Seals: High-performance metal-elastomer seals for long-term bearing protection
- Threads: API-standard alloy steel for secure, leak-free drill string connections
Quality Control
- Raw material verification (chemical composition, hardness testing)
- Dimensional accuracy check (bit size, thread tolerance, runout)
- Bearing performance test (rotation, load capacity, seal durability)
- Hydraulic flow test (nozzle efficiency, pressure drop)
- Non-destructive testing (UT/MT) to eliminate internal cracks
- Field trial validation for formation adaptability and real-world performance
Why Choose Hainaisen
- 15+ years of professional drilling tool manufacturing expertise
- Custom bit design tailored to your specific formation and drilling parameters
- Strict ISO 9001 quality control across every production stage
- Fast lead time (7-15 days for standard bits) and global shipping support
- 24/7 technical support and after-sales service for drilling projects
- Competitive pricing without compromising performance or durability
Packaging & Shipping
- Standard export fumigation-free wooden case for safe international transport
- Inner foam cushioning to protect bits from impact and damage during transit
- Custom packaging solutions for bulk orders
- Multiple shipping options: sea freight, air freight, express (DHL, FedEx, TNT)
- Real-time tracking number provided for all shipments
- Lead time: 7-15 working days for standard orders; 15-25 working days for customized bits
Exhibitions
We attend leading global energy and drilling exhibitions annually to connect with clients and showcase our products:
- CIPPE (China International Petroleum & Petrochemical Technology Exhibition)
- OTC (Offshore Technology Conference)
- ADIPEC (Abu Dhabi International Petroleum Exhibition & Conference)
- MINExpo INTERNATIONAL
- Regional oil/gas and mining expos worldwide
Certifications
Our products meet strict international industry standards:
- ISO 9001:2015 Quality Management System
- API Spec 7-1 Certification (Drill Bits & Connections)
- CE Certification (EU Market Compliance)
- SGS Material & Performance Testing Reports
FAQ
Q1: What formations is the IADC 537 tricone bit suitable for?
A: This bit is engineered for medium-hard to hard formations, including limestone, dolomite, granite, compacted sandstone, and other high-compressive strength rocks.
Q2: Can you customize the bit size, connection, or IADC code?
A: Yes, we offer fully customized tricone bits with various sizes, IADC codes, and API connection types to match your project’s unique needs.
Q3: What is the service life of this bit?
A: Service life depends on formation hardness, drilling parameters, and operation conditions. Our bits deliver 20-30% longer wear life than standard industry models in matching formations.
Q4: Do you provide after-sales support?
A: Absolutely. We offer 24/7 technical support, bit performance analysis, and on-site guidance for drilling projects, plus replacement solutions for any quality issues.
Q5: What is the minimum order quantity?
A: The MOQ for standard 4 1/2" IADC 637 bits is 1 piece. Bulk orders are welcome with volume discounts.
